Co-variation in protein complex members

# options
options(stringsAsFactors = F)
knitr::opts_chunk$set(echo = TRUE, warning = FALSE, message = FALSE)
knitr::opts_knit$set(progress = FALSE)

Figure 2: Protein complex cohesiveness

# function to get pairwise correlations between complex members
get_corr <- function(x, subset="none", shared = FALSE) {

  male_samples <-  covarTidy.esc_prot %>%  filter( sex =="M")
  female_samples <-covarTidy.esc_prot %>%  filter( sex =="F")

  if( subset == "M"){
    expr_prot <- expr.esc_prot[intersect(shared.samples, male_samples$sampleid),all.prots$protein_id,drop=FALSE ]
    expr_rna  <- expr.esc_rna[ intersect(shared.samples, male_samples$sampleid),,drop=FALSE ]
  }
  if( subset == "F"){
    expr_prot <- expr.esc_prot[ intersect(shared.samples, female_samples$sampleid),all.prots$protein_id,drop=FALSE ]
    expr_rna  <- expr.esc_rna[ intersect(shared.samples, female_samples$sampleid),,drop=FALSE ]
  }
  if( subset =="none"){
    expr_prot <- expr.esc_prot[ shared.samples,all.prots$protein_id,drop=FALSE ]
    expr_rna  <- expr.esc_rna[ shared.samples,,drop=FALSE ]
  }


  ids <- filter(complex.gene.list, human_ids %in% unlist(x))
  if ( shared ==T & length(intersect(shared.genes$ensembl_gene_id, ids$ensembl_gene_id)) > 1 &
         length(intersect(all.prots$protein_id, ids$protein_id)) > 1 ) {

        cors.rna <- rcorr(expr_rna[, unique(intersect(shared.genes$ensembl_gene_id, ids$ensembl_gene_id)),drop=FALSE])
        cors.rna.df <- tibble( col_rna = colnames(cors.rna$r)[col(cors.rna$r)] ,
                         row_rna = rownames(cors.rna$r)[row(cors.rna$r)] ,
                         cor_rna = c(cors.rna$r),
                         n_rna = c(cors.rna$n),
                         p_rna = c(cors.rna$P)) %>%
          left_join( .,
                     select(all.genes,
                            ensembl_gene_id, mgi_symbol),
                     by=c("col_rna"="ensembl_gene_id")) %>%
          rename( ensembl_gene_id_col = col_rna,
                  mgi_symbol_col = mgi_symbol) %>%
          left_join(.,
                    select(all.genes,
                           ensembl_gene_id, mgi_symbol),
                    by=c("row_rna"="ensembl_gene_id")) %>%
          rename(ensembl_gene_id_row = row_rna,
                 mgi_symbol_row = mgi_symbol)

        cors.prot <- rcorr(expr_prot[, unique(intersect(shared.genes$protein_id, ids$protein_id)),drop=FALSE])

        cors.prot.df <- tibble( col_prot = colnames(cors.prot$r)[col(cors.prot$r)] ,
                         row_prot = rownames(cors.prot$r)[row(cors.prot$r)] ,
                         cor_prot = c(cors.prot$r),
                         n_prot = c(cors.prot$n),
                         p_prot = c(cors.prot$P)) %>%
          left_join( .,
                     select(all.prots2,
                            protein_id, ensembl_gene_id, mgi_symbol),
                     by=c("col_prot"="protein_id")) %>%
          rename( protein_id_col = col_prot ,
                  mgi_symbol_col = mgi_symbol) %>%
          left_join( .,
                     select(all.prots2,
                            ensembl_gene_id, protein_id, mgi_symbol),
                     by=c("row_prot"="protein_id")) %>%
          rename(protein_id_row = row_prot,
                 mgi_symbol_row = mgi_symbol)

        all.cors <- full_join( cors.prot.df, cors.rna.df) %>%
          mutate( diff = cor_prot - cor_rna)
        return(all.cors)
  }
  if(shared ==F & length(intersect(all.prots$protein_id, ids$protein_id)) > 1){

         cors.prot <- rcorr(expr_prot[, unique(intersect(shared.genes$protein_id, ids$protein_id)),drop=FALSE])

         cors.prot.df <- tibble( col_prot = colnames(cors.prot$r)[col(cors.prot$r)] ,
                         row_prot = rownames(cors.prot$r)[row(cors.prot$r)] ,
                         cor_prot = c(cors.prot$r),
                         n_prot = c(cors.prot$n),
                         p_prot = c(cors.prot$P)) %>%
          left_join( .,
                     select(all.prots2,
                            protein_id, ensembl_gene_id, mgi_symbol),
                     by=c("col_prot"="protein_id")) %>%
          rename( protein_id_col = col_prot ,
                  ensembl_gene_id_col = ensembl_gene_id,
                  mgi_symbol_col = mgi_symbol) %>%
          left_join( .,
                     select(all.prots2,
                            ensembl_gene_id, protein_id, mgi_symbol),
                     by=c("row_prot"="protein_id")) %>%
          rename(protein_id_row = row_prot,
                 ensembl_gene_id_row = ensembl_gene_id,
                 mgi_symbol_row = mgi_symbol)

         return(cors.prot.df)
  }
  return(NA)

}

# let's get correlations for all the complexes then filter later
names(complex.genes) <- complexes$`Complex Name`
complex_prot_cor <- complex.genes %>%
  map( get_corr, shared = FALSE)

complex_genes <- complex.genes %>%
  enframe( "Complex Name","human_ids") %>%
  unnest(human_ids) %>%
  left_join( complex.gene.list) %>%
  filter( !is.na(protein_id)) %>%
  group_by(ensembl_gene_id, protein_id, `Complex Name`) %>%  mutate( n = seq(1:n())) %>%  filter( n  == 1) %>%  select(-n) %>% ungroup() %>% #there are some human ids that match to the same gene/protein, we need to clean those up before doing means etc.
  filter( !protein_id %in% (filter(peaks.esc_prot, lod > 7.5))$phenotype ) %>% # filter proteins with significant pQTL
  group_by(`Complex Name`) %>%
  mutate( n_complex = n_distinct(protein_id)) %>%
  ungroup() %>%
  filter( n_complex > 4) %>% # filter complexes <5
  group_by(protein_id) %>%
  mutate( n_overlap = n_distinct(`Complex Name`)) %>% # add the overlap of proteins ONLY for the complexes we have in our analysis.
  ungroup() %>%
  group_by(`Complex Name`) %>%
  mutate(n_mean = mean(n_overlap)) %>%
  ungroup()

#remaining complexes to analyze
complexes_to_analyze <- complex_genes %>%
  select( `Complex Name`, n_complex, n_mean) %>%
  distinct()

complex_prot_cor_df <- complex_prot_cor %>%
  enframe( "Complex Name", "data") %>%
  unnest("data") %>%
  filter( !is.na(protein_id_col), !is.na(protein_id_row) ) %>% # filter NAs if any.
  filter( `Complex Name` %in% complexes_to_analyze$`Complex Name`) %>% # filter the complexes
  filter( protein_id_col %in% complex_genes$protein_id,
          protein_id_row %in% complex_genes$protein_id) # filter for the genes to analyze

complex_prot_cor_df %>%
  filter( protein_id_col != protein_id_row) %>%
  group_by(`Complex Name`) %>%
  summarise( median_prot = median(cor_prot, na.rm=TRUE)
             ) %>%
  ungroup() -> mean_complex_prot

complex_prot_cor_df %>%
  filter( protein_id_col != protein_id_row) %>%
  group_by(`Complex Name`,protein_id_col) %>%
  summarize( cor_prot = median(cor_prot, na.rm=T)) %>%
  rename(protein_id = protein_id_col) %>%
  ungroup() -> mean_gene_complex_prot


complex_genes  %>%
  left_join( .,
             rename(mean_gene_complex_prot,
                    cor_gene_prot = cor_prot) ) %>%
  left_join(.,
            rename(mean_complex_prot,
                   cor_complex_prot = median_prot))-> complex_genes_annotated


complexes_annotated <- mean_complex_prot %>%
  mutate( complex_q75 = quantile( (median_prot), 0.90) ,
          complex_q25 = quantile( (median_prot), 0.1) ) %>%
  mutate( complex_type = case_when( median_prot > complex_q75 ~ "stable",
                                    median_prot < complex_q25 ~ "variable",
                                    (median_prot >= complex_q25 & median_prot <= complex_q75) ~ "none")
          )  %>%
  select( `Complex Name`,complex_type)%>%
  left_join( select( complex_genes_annotated,
                     `Complex Name`,
                     cor_complex_prot,
                     n_complex,
                     n_mean))

Figure2_data <- complex_genes_annotated %>%
  left_join( select(complexes_annotated, `Complex Name`, complex_type)) %>%
  distinct() %>%
  mutate( mgi_symbol = toupper(mgi_symbol)) %>%
  select( `Complex Name`,
          `Complex Cohesivenes` = cor_complex_prot,
          `Protein` = mgi_symbol,
          `Average pairwise correlation` = cor_gene_prot) %>%
  distinct()

Figure2_data %>%
  arrange( desc(`Complex Cohesivenes`) ) %>%
  mutate( label = factor(`Complex Name`, levels = unique(`Complex Name`))) %>%
  ggboxplot(
    x = "label",
    y = "Average pairwise correlation",
    fill = "Complex Cohesivenes",
    sort.val = "desc",
    xlab = "",
    ylab = "Correlation",
    width = 1
  )+
  theme_pubclean( base_size = 10, base_family ="poppins")+
  theme(axis.text.x = element_text(angle = 0, hjust = 1, size = 0),
        legend.position = "top",
        legend.text = element_text(angle=15, hjust =0.1, size = 12),
        legend.title = element_text(angle=0, hjust =0, vjust = 0.9, size = 16),
        legend.title.align = 1,
        axis.text.y = element_text(angle=0, size = 18),
        axis.title.y = element_text(angle=90, size = 18),
        axis.ticks.x = element_blank())+
  labs( fill = "Complex\ncohesiveness")+
  scale_fill_viridis_c()

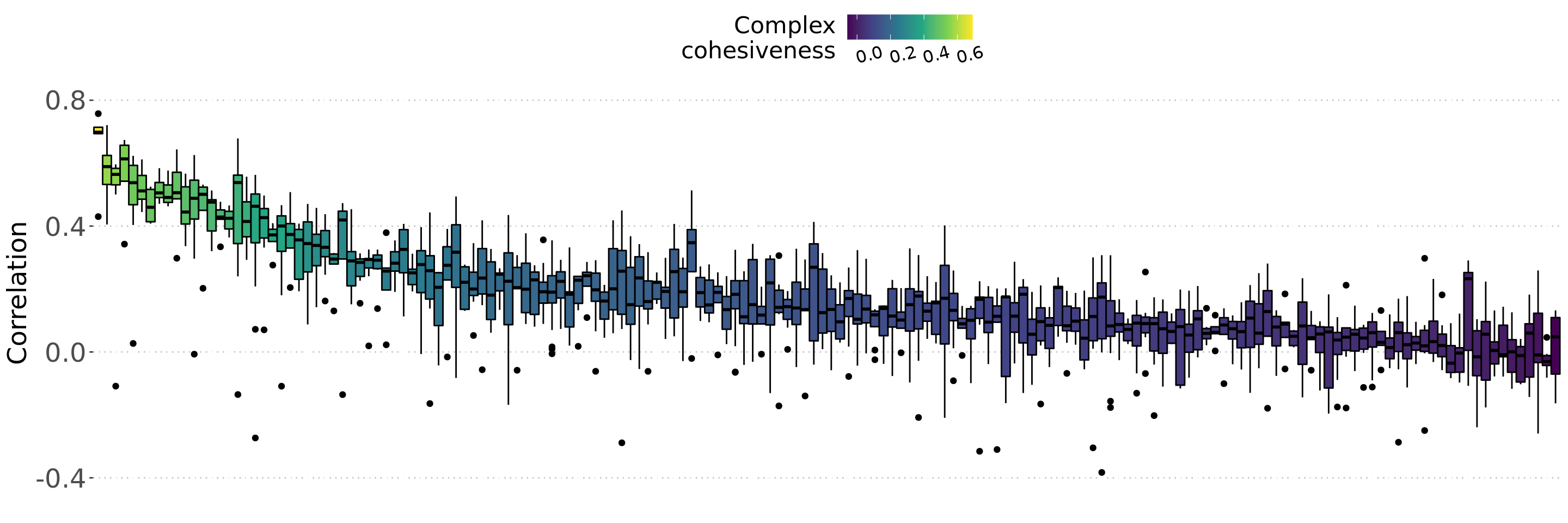

Figure 2: For each complex, pairwise Pearson correlations were calculated between all protein subunits and summarized as a boxplot. Boxplots are ordered and colored based on their median pairwise correlation, with more cohesive complexes on the left. Specific examples of the stable (most cohesive 10%) and variable (least cohesive 10%) complexes are highlighted

 Figure2_data %>%
  mutate_if( is.numeric, round ,2 ) %>%
  create_dt()

Data used to generate Figure 2.

Figure S2A: Variation in complex forming and other proteins

# Code used to generate Figure s2A
var_mean_prot %>%
  mutate(sd = sqrt(var)) %>%
  mutate(cv.prot = 100 * sd / (mean)) %>%
  rename(mean.prot = mean, sd.prot = sd) %>%
  mutate(complex_member = ifelse(protein_id %in% complex.gene.list$protein_id, TRUE, FALSE)) %>%
  ggboxplot(
    x = "complex_member",
    y = "cv.prot", col = "complex_member",  palette = c("gray","red"), legend = "none", width = 0.2
  ) +
  stat_compare_means(method = "anova", label.y = 1.8) +
  ylab("% Coefficient of variation") + theme_pubclean(base_size = 12) + scale_y_log10() + xlab("Complex member") +
  theme(legend.position = "none") -> fig_s2a

ggarrange(fig_s2a,
          labels = "A",
          font.label = list( size = 20))

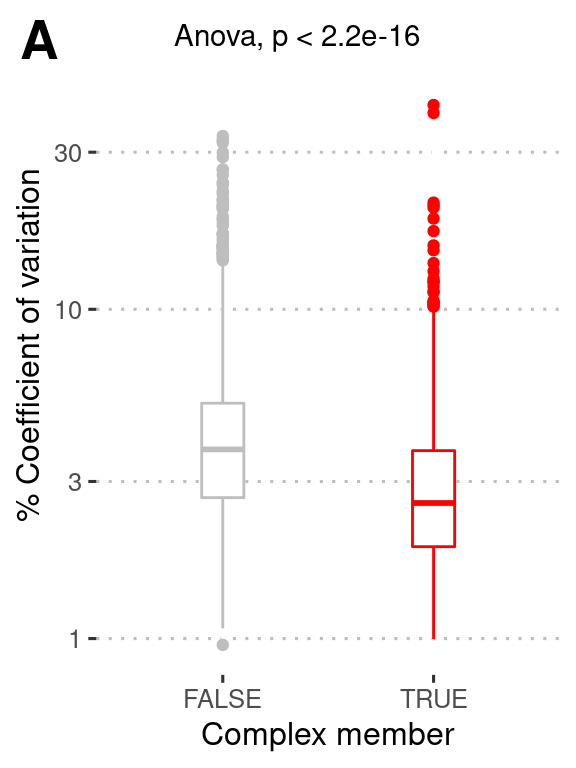

Figure S2A: Proteins that are part of a complex show less variation. Boxplots depicting % coefficient of variation of protein abundance for genes that are complex members and not complex members.

Figure S2B: Protein co-abundance in DO mESCs in complex forming and other proteins

# Code used to generate Figure S2B

# complex vs others
non.complex.prot.cor <- rcorr(expr.esc_prot[, (filter(all.prots, !protein_id %in% complex.gene.list$protein_id))$protein_id])
diag(non.complex.prot.cor$r) <- NA

complex_prot_cor_df %>%
  select( -ensembl_gene_id_col, -ensembl_gene_id_row) %>%
  distinct() %>%
  filter( protein_id_col != protein_id_row) -> dat.prot

tibble(cor = (c(non.complex.prot.cor$r))) %>%
  ggplot()+
  geom_density( aes(x=cor,
                    fill = "Other pairs"),
                alpha =0.5) -> p1

p1+geom_density(data= dat.prot,
               aes(x=cor_prot,
                    fill = "Complex forming pairs" ),
                alpha = 0.5)+
  scale_fill_manual( values = c("Complex forming pairs"="red",
                        "Other pairs"="gray"))+
  theme_pubclean(base_size = 14)+
  xlab("Correlation")+
  labs(fill="") -> plot_protein_coab

ggarrange(plot_protein_coab,
          labels = "B",
          font.label = list( size = 20))

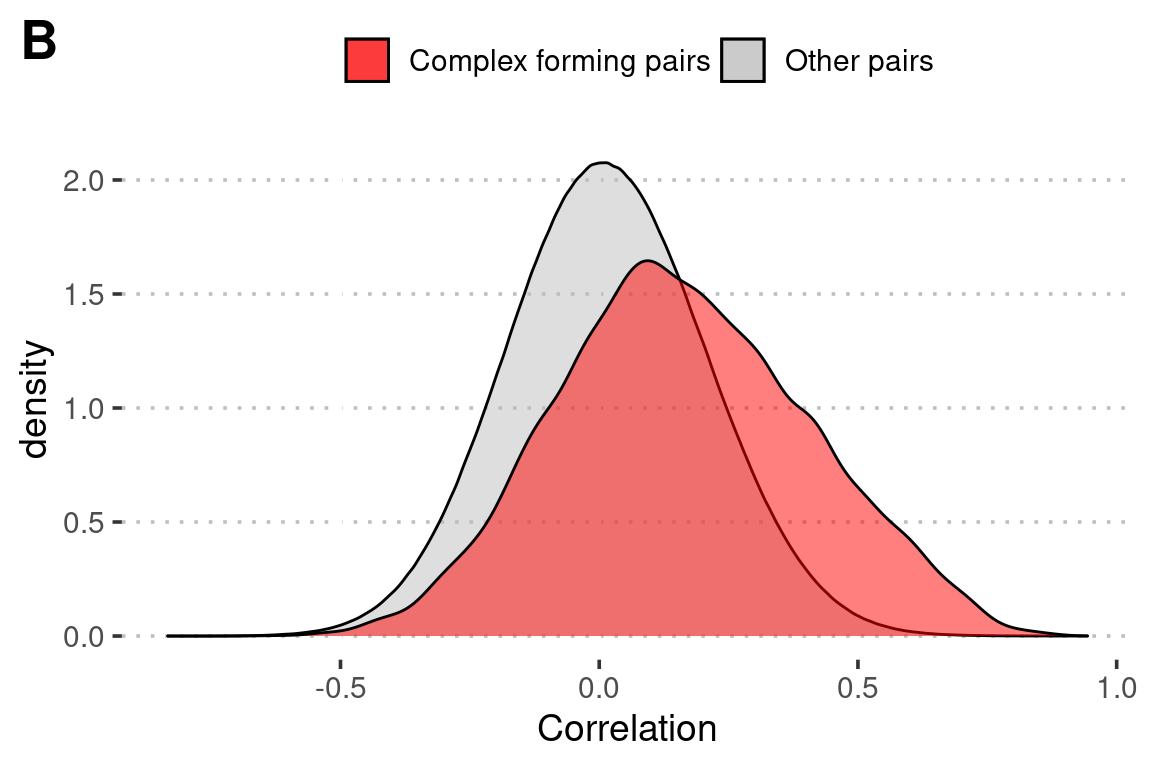

Figure S2B: Proteins that physically interact show higher pairwise correlation in abundance than non-interacting proteins. Density distributions of pairwise Pearson correlations between complex forming proteins and others are plotted.

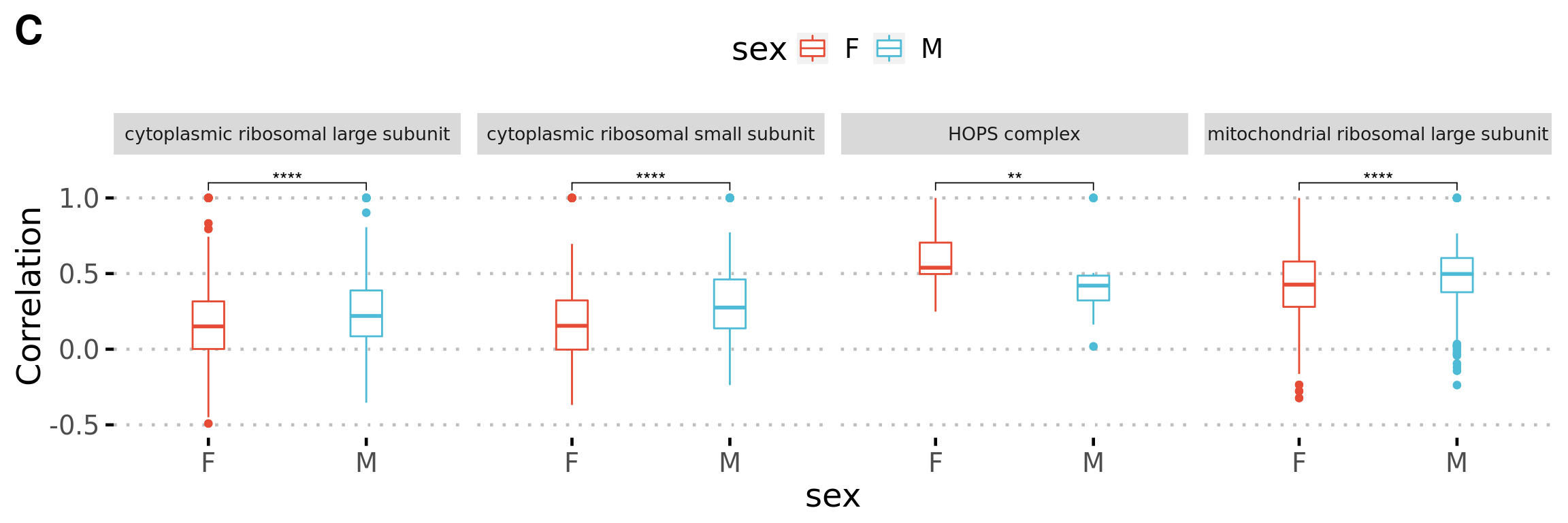

Figure S2C: Protein complexes that show sex effects

complex_prot_cor_male <- complex.genes %>%
  map( get_corr, subset ="M")

complex_prot_cor_female <- complex.genes %>%
  map( get_corr, subset ="F")


complex_prot_cor_female %>%
  enframe( "Complex Name", "data") %>%
  unnest("data") %>%
  filter( !is.na(protein_id_col), !is.na(protein_id_row) ) %>% # filter NAs if any.
  filter( `Complex Name` %in% complexes_to_analyze$`Complex Name`) %>% # filter the complexes
  filter( protein_id_col %in% complex_genes$protein_id,
          protein_id_row %in% complex_genes$protein_id) %>%
  group_by(`Complex Name`) %>%
  mutate(n_complex =n_distinct(protein_id_col) ) %>%
  filter(n_complex > 4) %>%
  mutate( sex = "F") -> complex_prot_cor_female_df

complex_prot_cor_male %>%
  enframe( "Complex Name", "data") %>%
  unnest("data") %>%
  filter( !is.na(protein_id_col), !is.na(protein_id_row) ) %>% # filter NAs if any.
  filter( `Complex Name` %in% complexes_to_analyze$`Complex Name`) %>% # filter the complexes
   filter( protein_id_col %in% complex_genes$protein_id,
          protein_id_row %in% complex_genes$protein_id) %>%
  group_by(`Complex Name`) %>%
  mutate(n_complex =n_distinct(protein_id_col) ) %>%
  filter(n_complex > 4) %>%
  mutate(sex ="M") -> complex_prot_cor_male_df

complex_prot_cor_sexes <- rbind( complex_prot_cor_female_df, complex_prot_cor_male_df) %>%
  pivot_wider( names_from = sex, values_from = c("cor_prot","n_prot","p_prot"))

# anova first
# follow up on the ones with significance
rbind( complex_prot_cor_female_df, complex_prot_cor_male_df) %>%
  group_by(`Complex Name`) %>%
  rstatix::anova_test( cor_prot ~ sex)  %>% # default is two.sided.
  rstatix::adjust_pvalue( method = "BH" ) %>%
  rstatix::add_significance("p.adj") %>%
  as_tibble() -> complex_aov_results

# passing the full data + doing the correction then filtering
rbind( complex_prot_cor_female_df, complex_prot_cor_male_df) %>%
  group_by(`Complex Name`) %>%
  # rstatix::t_test( cor_prot ~ sex, paired = TRUE) %>%
  # rstatix::adjust_pvalue( method = "BH" ) %>%
  rstatix::tukey_hsd( cor_prot ~sex) %>%
  rstatix::add_significance("p.adj") %>%
  filter(`Complex Name` %in% (filter(complex_aov_results, p.adj.signif != "ns"))$`Complex Name`,
         p.adj.signif!= "ns") -> complex_tukeys_results


rbind( complex_prot_cor_female_df, complex_prot_cor_male_df) %>%
  filter(`Complex Name` %in% filter(complex_tukeys_results, p.adj.signif != "ns")$`Complex Name`) %>%
  ggboxplot(
    x = "sex",
    y = "cor_prot",
    col = "sex",
    palette = "npg",
    #facet.by = "`Complex Name`",
    ylab = "Correlation",
    ggtheme = theme_pubclean(base_size = 18, base_family = "Poppins"),
    width = 0.2
  )+
  stat_pvalue_manual( data = filter(complex_tukeys_results, p.adj.signif != "ns"),
                      label = "p.adj.signif",
                      y.position = 1.1)+
  ylim(-0.5, 1.2) -> p_complex_sex

fig_s2c <- facet( p_complex_sex,
       facet.by = "`Complex Name`",
       panel.labs.font = list( size = 10),
       nrow = 1)

ggarrange(fig_s2c,
          labels = "C",
          font.label = list( size = 22))

Figure S2C: Sex influences the co-regulation of complex subunits. Boxplots of pairwise Pearson correlations among complex subunits with significant differences between male and female cell lines are shown (One way ANOVA followed by Tukey’s HSD, ****: p value < 0.00005).

---

A work by Selcan Aydin

selcan.aydin@jax.org
